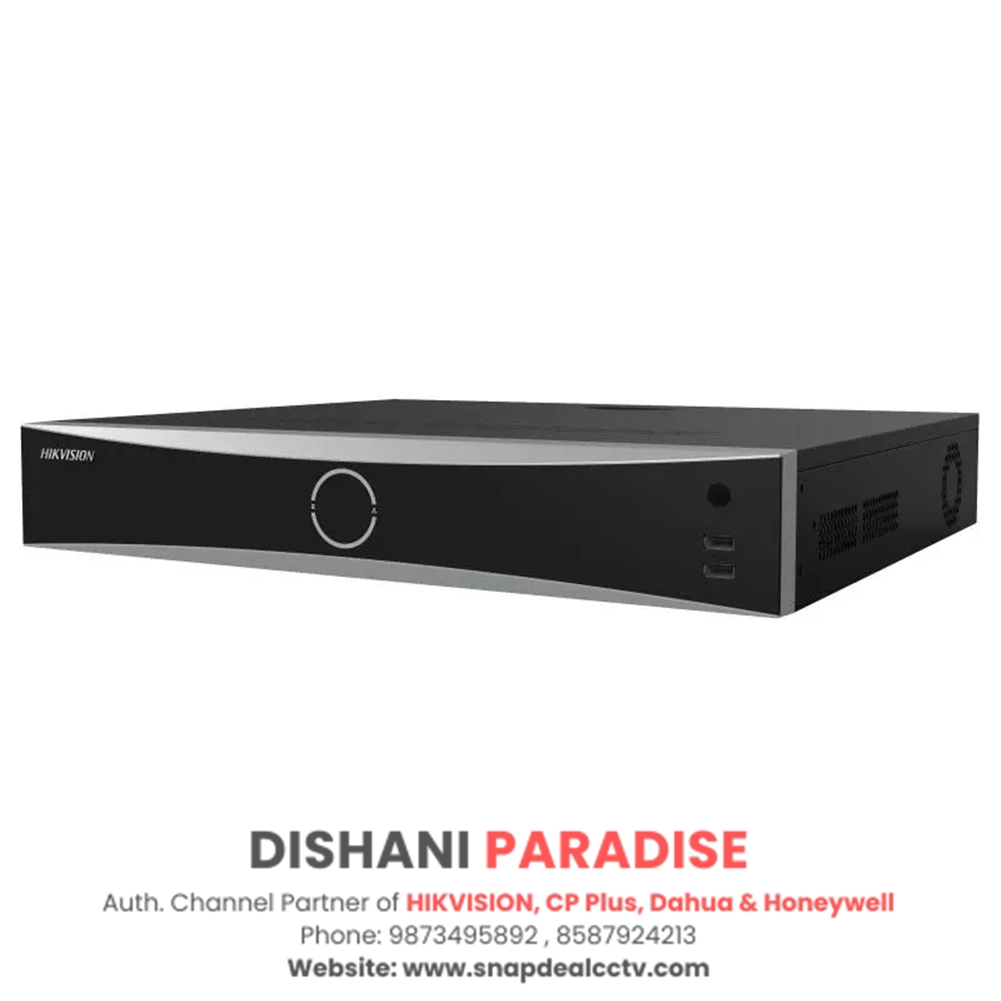

HIKVISION Pro 32 Channel 4K 4-SATA AcuSense H.265 NVR (DS-7732NXI-K4)

32-ch 1.5U K Series AcuSense 4K NVR Up to 32-ch IP camera inputs H.265 /H.265/H.264 /H.264 video formats Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity Up to 256 Mbps incoming bandwidth Adopt Hikvision Acusense technology to minimize manual effort and security costs Facial Recognition Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) Facial Detection And Analytics Performance1-ch human face capture Face Picture Comparison4-ch face picture comparison alarm Motion Detection 2.0 Human/Vehicle Analysis32-ch Perimeter Protection Human/Vehicle AnalysisUp to 2-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Video And Audio IP Video Input32-ch Incoming Bandwidth256 Mbps Outgoing Bandwidth160 Mbps HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output ModeHDMI/VGA independent output CVBS OutputN/A Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ) Decoding Decoding FormatH.265/H.265 /H.264 /H.264 Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback16-ch Decoding Capability AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC Network Remote Connection128 Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces Auxiliary Interface SATA4 SATA interfaces CapacityUp to 10 TB capacity for each HDD Serial Interface2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out16/4 (16/9 is optional) USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12VN/A (optional to support) DC 12VN/A (optional to support) General Power Supply100 to 240 VAC, 50 to 60Hz Consumption≤ 20 W (without HDD) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10 to 90 % Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″) Weight≤ 5 kg (without HDD, 11 lb.) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
