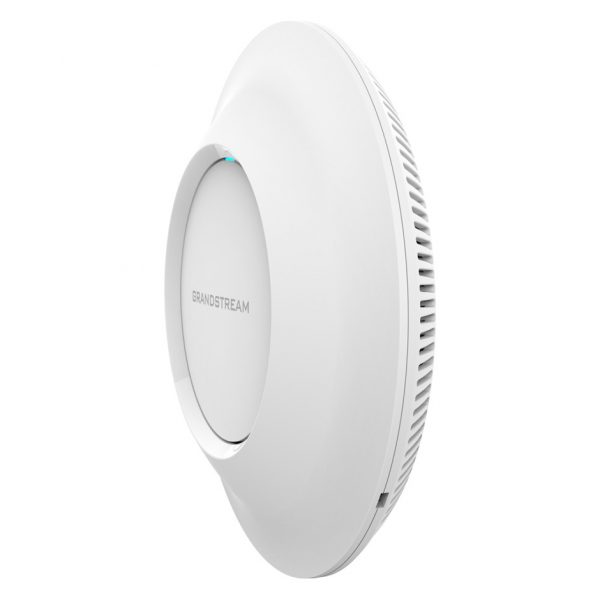

Grandstream GWN7610 – Enterprise 802.11ac Wi-Fi Access Point

Description The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 3×3:3 MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing seperate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 250 client devices per AP and dual Gigabit network ports with PoE/PoE , the GWN7610 is an ideal wireless access point for large and small wireless network deployments.   Grandstream GWN7610 Key Features 1.75Gbps wireless throughput and 2x Gigabit wireline ports Dual-band 3×3:3 MIMO technology Self power adaptation upon auto detection of PoE/PoE Support more than 250 Wi-Fi client devices Up to 175-meter coverage range Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller   Grandstream GWN7610 Technical Specifications WiFi Standards IEEE 802.11a/b/g/n/ac (Wave-2) Antennas 3x 2.4 GHz, gain 3 dBi, internal antenna 3x 5 GHz, gain 3 dBi, internal antenna WiFi Data Rates IEEE 802.11ac: 6.5 Mbps to 1300 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5 Mbps to 450 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network Frequency Bands 2.4GHz radio : 2.400 – 2.4835 GHz 5GHz radio: 5.150 – 5.250 GHz, 5.725 – 5.850 GHz (FCC, IC, RCM) Channel Bandwidth 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz WiFi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device MIMO 3×3:3 2.4GHz, 3×3:3 5GHz Coverage Range Up to 575 ft. (175 meters) *coverage range can vary based on the environment Maximum TX Power 5G: 26dBm (FCC) / 20dBm (CE) 2.4G: 26dBm (FCC) / 17dBm (CE) *Maximum power varies by country, frequency band and MCS rate Receiver Sensitivity 2.4G 802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7 5G 802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz: -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz * Receiver sensitivity varies by frequency band, channel width and MCS rate SSIDs 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) Concurrent clients 250 Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports Auxiliary Ports 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock Mounting Indoor wall mount or ceiling mount, kits included LEDs 3 x tri-color LED for device tracking and status indication Network Protocols IPv4,  802.1Q, 802.1p, 802.1x, 802.11e/WMM QoS 802.11e/WMM, VLAN, TOS Network Management Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs Auto Power Saving Self power adaptation upon auto detection of PoE or PoE Power and Green Energy Efficiency DC Input: 24VDC/1A Power over Ethernet 802.3af/802.3at compliant Maximum Power Consumption:13.8W Environmental Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing Physical Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g Unit Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit Mounting Kits Weight : 600g Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g Package Content GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide Compliance FCC, CE, RCM, IC
