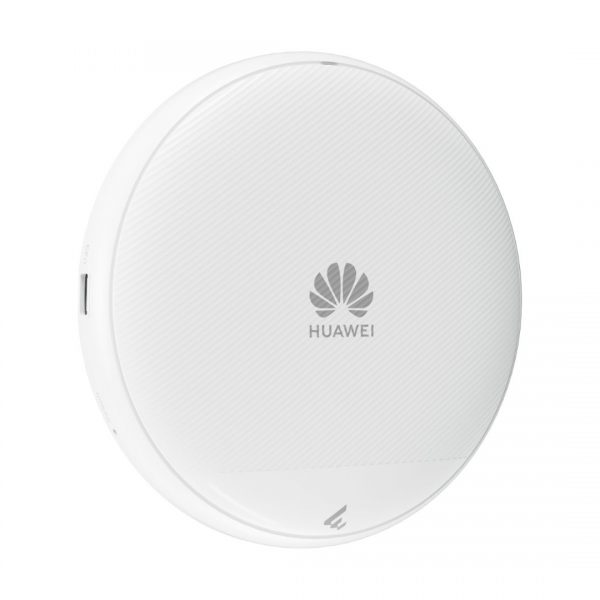

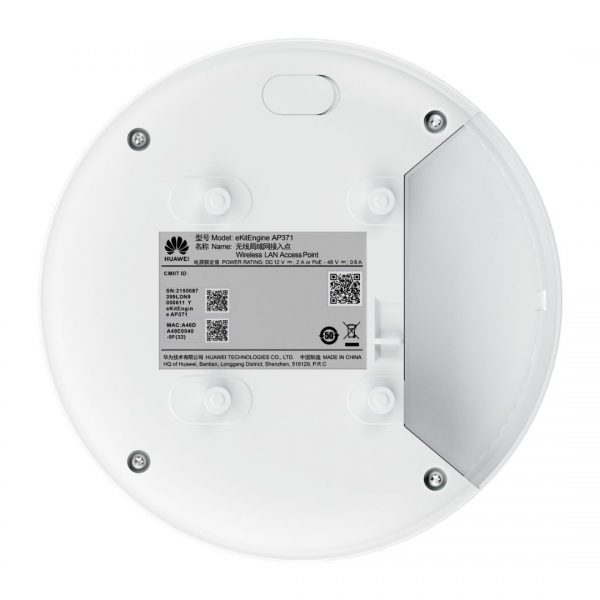

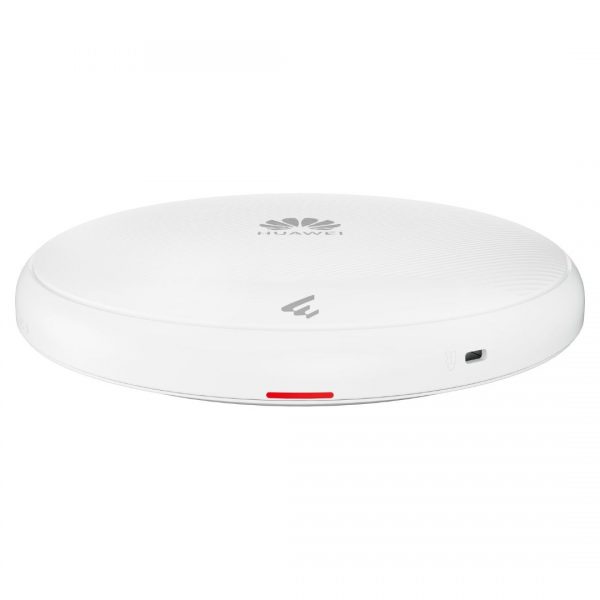

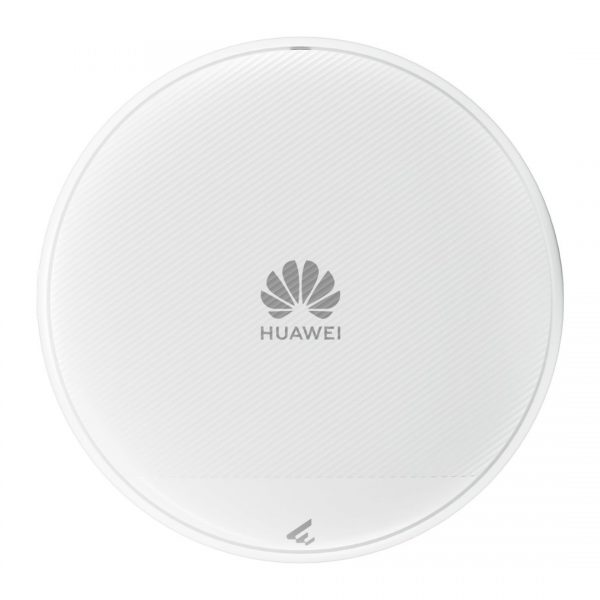

Huawei eKitEngine AP371 – BE3600 Dual-Band 2.5GE Settled Access Point

Description Huawei eKitEngine AP371 is a next-generation indoor access point in compliance with Wi-Fi 7 (802.11be). It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, supporting a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps. The AP is empowered by brand-new Wi-Fi 7 technologies and is equipped with built-in smart antennas to enable always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. Additionally, it has a compact size, facilitating flexible deployment and saving customer investment. These strengths make the eKitEngine AP371 ideal for indoor coverage scenarios such as small- and medium-sized business (SMB) workplaces, hospitals, and shopping malls and supermarkets. Product Specifications Dimensions (Diameter x Depth): 180 mm × 35 mm Weight: 0.47 kg Port Type: 1 × 2.5GE (RJ45) 100M/1000M/2.5G auto-sensing port (PoE input) Additional Ports: DC Input: 12 V power adapter connector USB Type-A: Provides 2.5 W or 5 W power output Management Console Port: Pin header socket Installation Type: Wall / Ceiling (Solid Wall, Gypsum Board, Spring Tee, Flat-Edge T-Rail, Channel Rail, Beam, Threaded Rod) Console Port: None Storage: NAND Flash 256 MB Power Specifications Power Input: PoE or DC power adapter Rated Input Voltage: 12 V Input Voltage Range: DC: 12 V ±10% PoE: IEEE 802.3af/at Maximum Power Consumption: 13.3 W (excluding USB) Maximum Heat Dissipation: 43.1 BTU/hour PoE OUT: Not supported Environmental Specifications Operating Temperature: –10°C to 50°C (decreases by 1°C per 300 m above 1800 m) Storage Temperature: –40°C to 70°C Operating Humidity: 5% to 95% (non-condensing) Operating Altitude: –60 m to 5000 m Atmospheric Pressure: 53 kPa to 106 kPa Ground: Floating ground Hardware & Interfaces Maximum Ports: 1 × 2.5GE (RJ45) USB: Supported (2.5 W / 5 W output) IoT Slot: Not supported BLE: Not supported Radio Specifications Radio Count: 2 Frequency Bands: 2.4 GHz and 5 GHz MIMO: 2×2 (2.4 GHz) / 2×2 (5 GHz) Wi-Fi Standards: 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac (Wave 2)/ax/be Antenna Type: Built-in smart antennas Antenna Gain: 2.4 GHz: 4 dBi/chain (peak), 1 dBi (combined) 5 GHz: 5 dBi/chain (peak), 3 dBi (combined) Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined) 5 GHz: 20 dBm/chain, 23 dBm (combined) Transmit Power Range: 2.4 GHz: –10 dBm to 20 dBm/chain 5 GHz: –10 dBm to 20 dBm/chain Reliability & Performance MTBF: 158.215 years MTTR: 2 hours Frequency Stability: /-20 ppm Protection & Compliance Surge Protection (PoE Port): Common Mode: 4 kV (1.2/50 μs) Differential Mode: 0.5 kV (1.2/50 μs) 802.3at: No function limitations 802.3af: USB power disabled; other functions unaffected DC Power Supply: No function limitations
