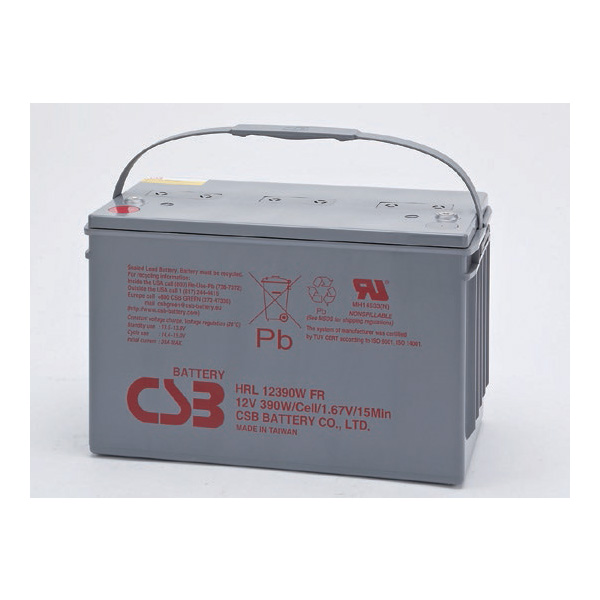

CSB HRL12390W Sealed Lead Acid Battery

Description The CSB HRL12390W Sealed Lead Acid Battery is a battery designed for high efficient discharge application. Its characteristics are high energy density, small footprint and high discharge efficiency.  For higher temperatures, the time interval of the battery will be shorter. Battery Specifications CSB HRL12390W Sealed Lead Acid Battery Specification           Cells Per Unit 6 Voltage Per Unit 12 V Capacity 410W @15 minute-rate to 1.67V per cell @25? (77°F) Weight Approx. 33.0kg (72.73 lbs) Maximum Discharge Current 800A(5sec) Internal Resistance Approx Approx. 3.0 m? Operating Temperature Range Discharge?-15?~50?(5°F~122°F) Charge?-15?~40?(5°F~104°F) Storage?-15?~40?(5°F~104°F) Nominal Operating Temperature Range 25?±3? (77°F±5° F) Float Charging Voltage 13.5 to 13.8 VDC/unit Average at 25? (77°F) Recommended Maximum Charging Current Limit 39A Equalization and Cycle Service 14.4 to 15.0 VDC/Unit Average at 25?(77°F) Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25? Terminal I2-Thread lead alloy recessed terminal to accept M6 bol Container Material Polypropylene (UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request 10 Year Design Life Capacity A/H @ 20 Hr Rate : 12V 100 A/H W @ 10 min to 1.6 V per cell: 410W Dimensions : 342 x 170 x 217 mm This sealed lead acid batteries can do more than 260 cycles at 100% discharge rate in cycle service and up to 10 years in standby service. Charge the batteries before using them the first time. BROCHURE
