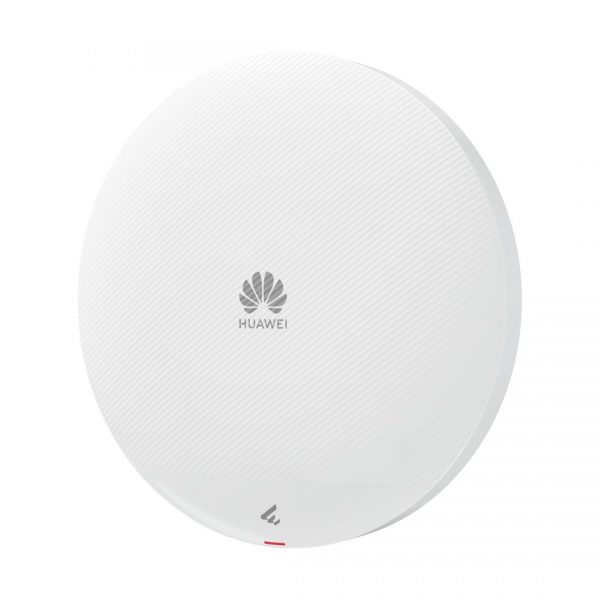

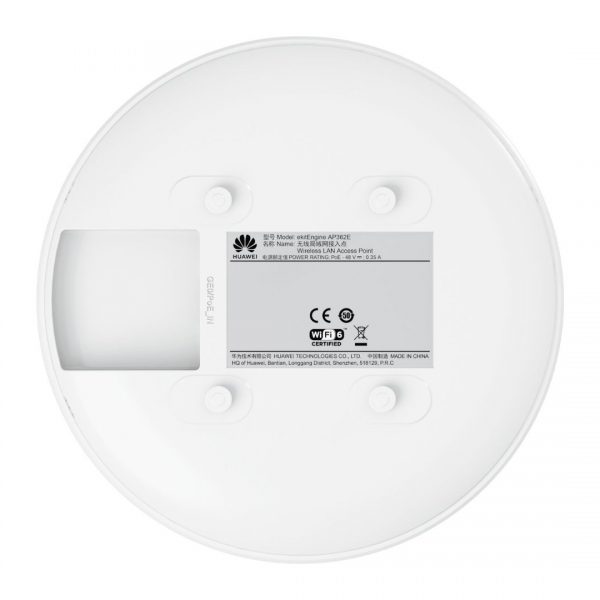

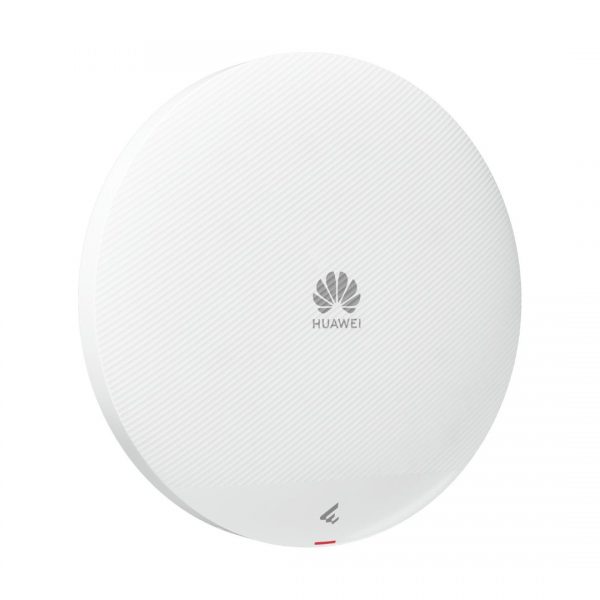

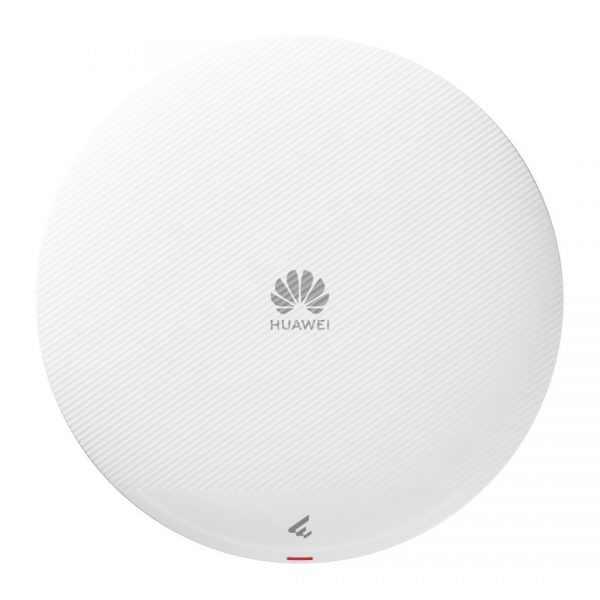

Huawei eKitEngine AP362E – AX3000 Dual-Band Ultra-High-Speed Wi-Fi 6 Settled Access Point

Description Product Specifications Dimensions (Diameter x Depth): 180 mm × 35 mm Weight: 0.45 kg Port Type: 1 × GE (RJ45) 10M/100M/1000M auto-sensing port (PoE input) Installation Type: Wall / Ceiling (Solid Wall, Gypsum Board, Spring Tee, Flat-Edge T-Rail, Channel Rail, Beam, Threaded Rod) Console Port: None Storage: NAND Flash 256 MB Power Specifications Power Input: PoE (IEEE 802.3af) Maximum Power Consumption: 12.3 W Maximum Heat Dissipation: 39.9 BTU/hour PoE OUT: Not supported Rated Input Voltage: N/A Environmental Specifications Operating Temperature: 0°C to 40°C (decreases by 1°C per 300 m above 1800 m) Storage Temperature: –40°C to 70°C Operating Humidity: 5% to 95% (non-condensing) Altitude: –60 m to 5000 m Atmospheric Pressure: 53 kPa to 106 kPa Ground: Floating ground Hardware & Interfaces Maximum Ports: 1 × GE (RJ45) USB: Not supported IoT Slot: Not supported BLE: Not supported Radio Specifications Radio Count: 2 Frequency Bands: 2.4 GHz and 5 GHz MIMO: 2×2 (2.4 GHz) / 2×2 (5 GHz) Wi-Fi Standards: 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac (Wave 2)/ax Antenna Type: Built-in smart antennas Antenna Gain: 2.4 GHz: 4 dBi/chain (peak), 2 dBi (combined) 5 GHz: 5 dBi/chain (peak), 3 dBi (combined) Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm combined 5 GHz: 20 dBm/chain, 23 dBm combined Transmit Power Range: 2.4 GHz: 0–20 dBm/chain 5 GHz: 0–20 dBm/chain Reliability & Performance MTBF: 440.3 years MTTR: 2 hours Frequency Stability: /-20 ppm Protection & Compliance Surge Protection (PoE Port): Common Mode: 4 kV (1.2/50 μs) Differential Mode: 0.5 kV (1.2/50 μs) 802.3bt/at/af: Operates in 802.3af mode, no function limitations DC Power Supply: Not supported
